iiyama All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
SKU
T6562AS-B1
Login for pricing
In stock
All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.
Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

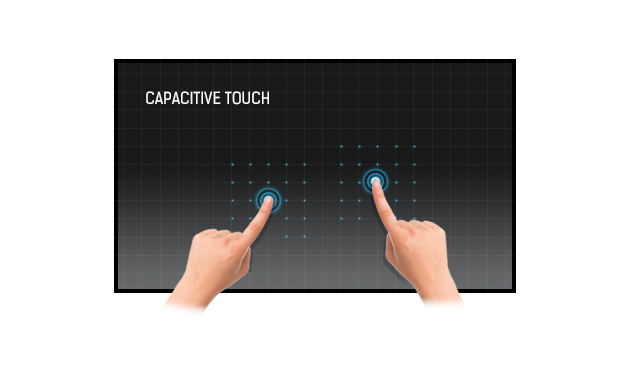

Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined design of the T6562AS-B1 lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before. EOL, Successor: ProLite T6529AS-B1
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 500 cd/m² |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| HD type | 4K Ultra HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.372 x 0.372 mm |
| Horizontal scan range | 30 - 135 kHz |
| Viewable size, horizontal | 80.3 cm |
| Display resolution | 3840 x 2160 pixels |
| Response time | 8 ms |
| Display diagonal | 163.8 cm (64.5") |
| Contrast ratio (typical) | 1200:1 |
| Surface hardness | 6H |
| NTSC coverage (typical) | 72% |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 20 |
| Panel type | IPS |
| Display diagonal (metric) | 164 cm |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 500 cd/m² |
| Response time measurement type | GTG (Gray to Gray) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Mean time between failures (MTBF) | 50000 h |
| Operating system installed | Android 8.0 |
| Operating hours (hours/days) | 24/7 |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Japanese, Polish, Russian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Design | |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 2.5 mm |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| USB version | 2.0 |
| DVI port | No |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 0 |
| HDCP | Yes |
| HDCP version | 2.2 |
| USB Touch port | Yes |
| RS-232C | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Pallet net width | 166 cm |
| Pallet net height | 13 cm |
| Pallet net length | 114 cm |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Built-in processor | Yes |
| Power supply type | Internal |
| Active display area (W x H) | 1422.4 x 802.6 mm |
| Multi-touch | Yes |
| Weight (with stand) | 38.4 kg |
| Surface hardness | 6H |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 20 |
| RS-232C | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Japanese, Polish, Russian |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 165 W |
| Power consumption (off) | 0.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width (with stand) | 1485 mm |
| Depth (with stand) | 71.8 mm |
| Height (with stand) | 860 mm |
| Weight (with stand) | 38.4 kg |
| Package width | 1649 mm |
| Package depth | 1649 mm |
| Package height | 1021 mm |
| Package weight | 46 kg |
| Width | 1485 mm |
| Weight | 38.4 kg |
| Height | 860 mm |
| Depth | 71.8 mm |
| Packaging data | |
| Package width | 1649 mm |
| Package depth | 1649 mm |
| Package height | 1021 mm |
| Package weight | 46 kg |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, RS-232, USB |
| Remote control batteries included | Yes |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, RS-232, USB |
| Remote control batteries included | Yes |
| Sustainability | |
| Sustainability certificates | ErP |
| Thin Client | |
| Operating system installed | Android 8.0 |
| Other features | |
| Built-in processor | Yes |
| Active display area (W x H) | 1422.4 x 802.6 mm |
| Multi-touch | Yes |
| USB ports quantity | 2 |
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| Width | 1485 mm |
| Weight | 38.4 kg |
| Height | 860 mm |
| Depth | 71.8 mm |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Remote control included | Yes |
| Quick start guide | Yes |
| Surface hardness | 6H |
| Power supply type | Internal |
| Ethernet LAN | Yes |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 20 |
| Front bezel colour | Black |
| Logistics data | |
| Pallet net width | 166 cm |
| Pallet net height | 13 cm |
| Pallet net length | 114 cm |
